Resin Bond Carbide Tools 1A1 100mm CBN Diamond Wheel

CBN εργαλείων 1A1 100mm καρβιδίου δεσμών ρητίνης ρόδα διαμαντιών

  • Υψηλό φως

    CBN 100mm ρόδα διαμαντιών

    ,

    1A1 CBN ρόδα διαμαντιών

    ,

    αλέθοντας δίσκος διαμαντιών 100mm

  • Όνομα
    αλέθοντας δίσκος διαμαντιών
  • Μέγεθος
    Μπορέστε να προσαρμοστείτε
  • Λειαντικός
    Diamond& CBN
  • Χρήση
    Ακόνισμα
  • Τύπος
    1A1
  • Τρίξιμο
    B60/70
  • Δεσμός
    δεσμός ρητίνης
  • Τόπος καταγωγής
    ΚΙΝΑ
  • Μάρκα
    JC
  • Πιστοποίηση
    ISO9001
  • Αριθμό μοντέλου
    1A1
  • Ποσότητα παραγγελίας min
    5pcs
  • Τιμή
    Negotiable
  • Συσκευασία λεπτομέρειες
    Ξύλινο κιβώτιο
  • Χρόνος παράδοσης
    5-8 ημέρες εργασίας
  • Όροι πληρωμής
    L/C, T/T
  • Δυνατότητα προσφοράς
    1000/month

CBN εργαλείων 1A1 100mm καρβιδίου δεσμών ρητίνης ρόδα διαμαντιών

1A1 CBN resin bond carbide tools grind diamond grinding wheel The diameter of 100mm

Product introduction:



Diamond Resin Adhesive Wheel is a combination of resin and filler that is pressed under heat and pressure and is easy to trim into angular, straight and special radius forms. A very fine finish can be achieved.



Mainly used for grinding high and hard alloys, non-metallic materials, cutting hard and brittle hard alloys, non-metallic minerals, etc.

Such as carbide, ceramics, agate, optical glass, semiconductor materials and wear-resistant cast iron, stone and so on. Including Surface grinding, OD grinding, centerless grinding, tool grinding, fine grinding, double disc grinding, slot grinding.



benefit:



1. High grinding efficiency; Much longer life of the wheel.


2. Good self-sharpening, lower grinding temperature; less blocking, less surface burn of a workpiece.


3. Grinding wheel has a certain elasticity, improving the surface roughness, used for grinding, semi-finish grinding, polishing, and another process



advantages:



1 Quality: as we are manufacturer of diamond powders which is raw material of diamond tools, we can assure the quality from original material. And can control the quality of all our tools as we have a professional and strict QC team.


2. Price: as a manufacturer, we can save production cost for customer.


3. Service: we have professional sales team and engineering team, can reply you at the first time, and solve problems for you soon.



Product size:



Size :100mm * 0.8mm

Substrate thickness: 12.7mm

Plating wide :13mm

Size::B60/70



We have different specifications and sizes, which can be customized according to customers' needs. If you have any questions, please feel free to contact me. Looking forward to your inquiry.



Resin grinding wheel Process:



Drawing, Drawing confirmed, Turning a cylindrical base, Base blank trimming, Powder mix, Pressing, Curing, Pressed under heat and pressure, Firing and drying, Matrix processing,
Working layer grinding, size/Dynamic balance Detection, Marking, Packing.



According to the product model, our resin diamond grinding wheel can be used to select a variety of grinding wheels.

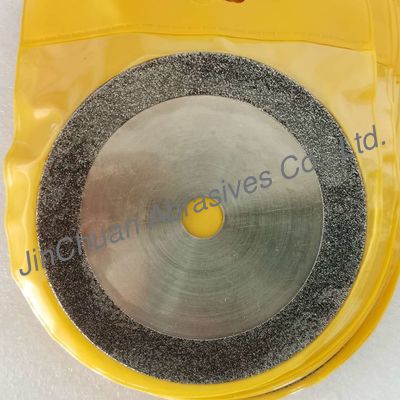

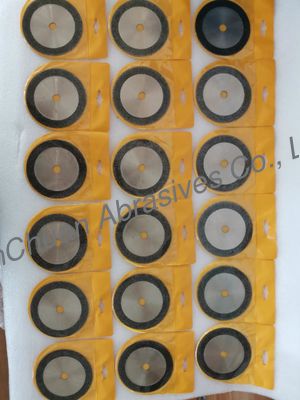

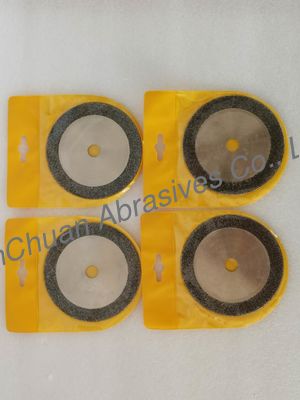

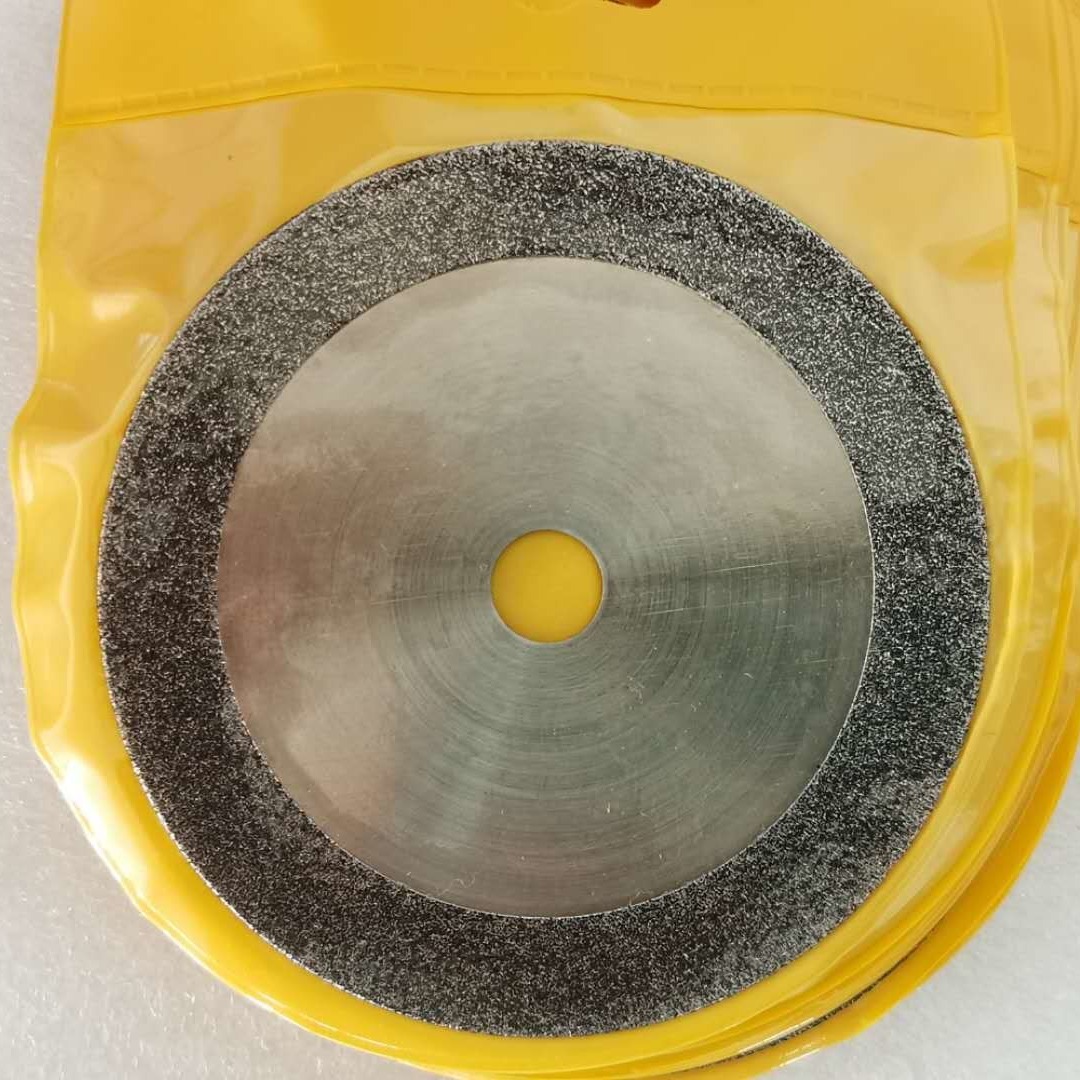

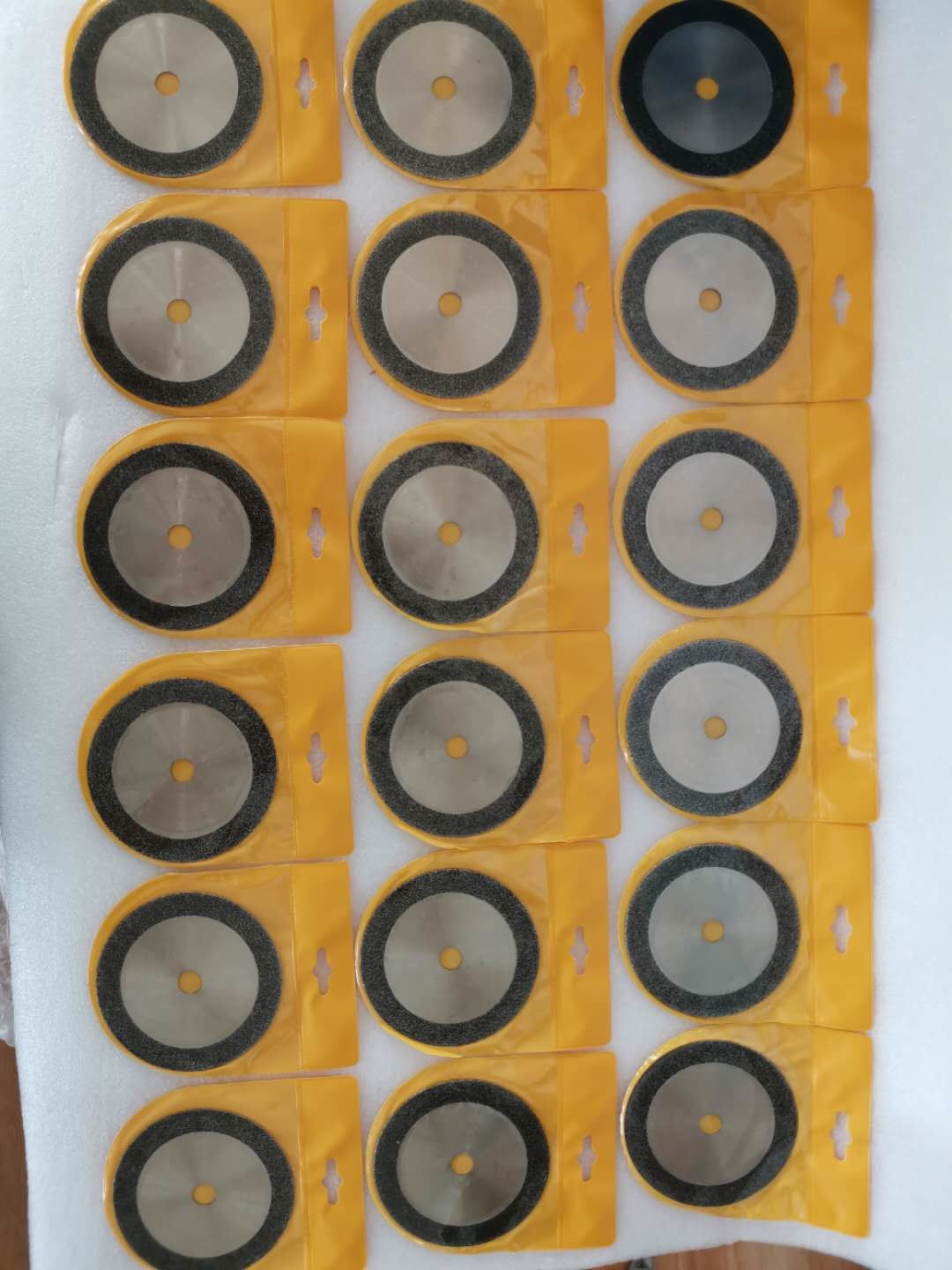

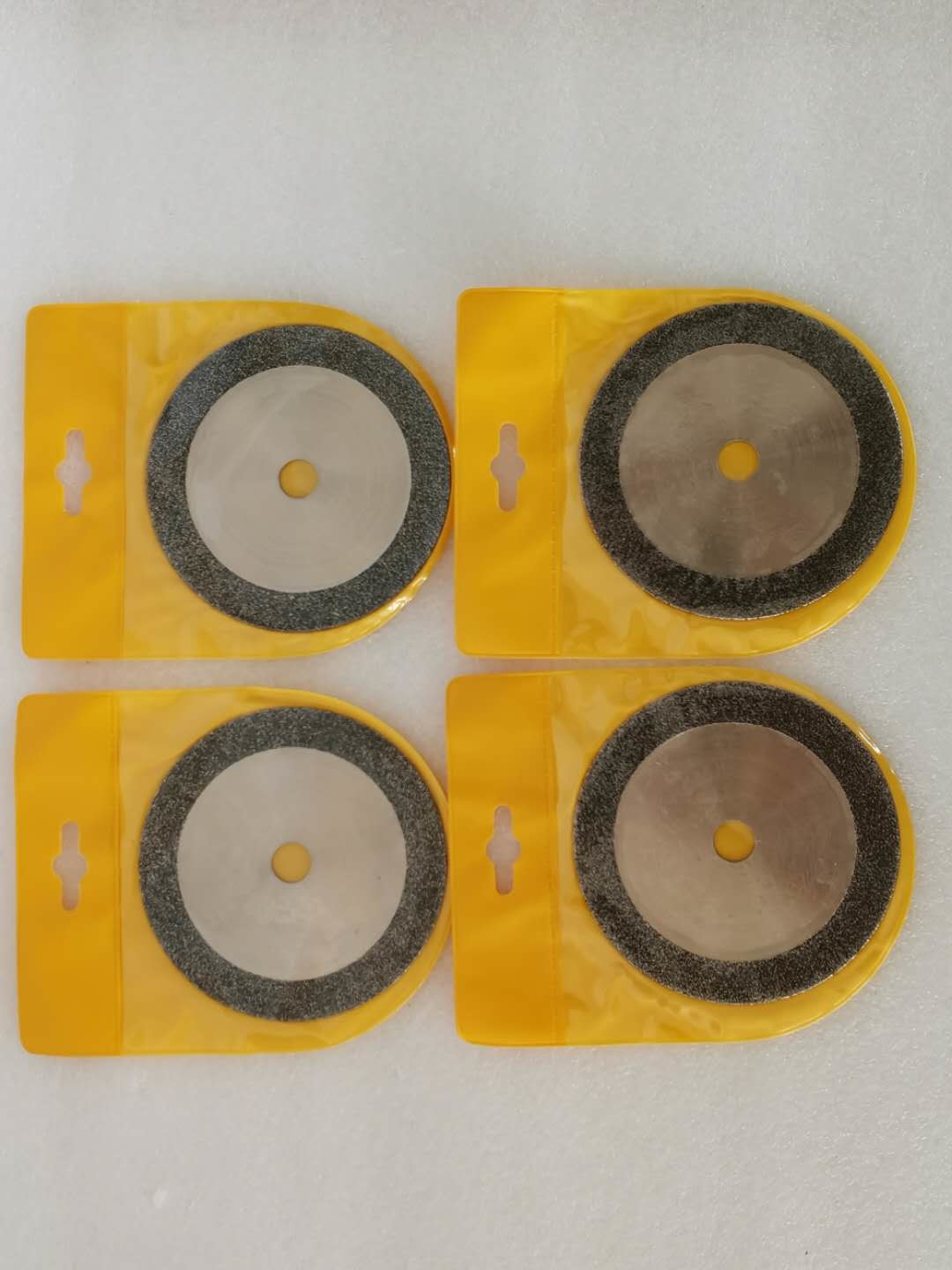

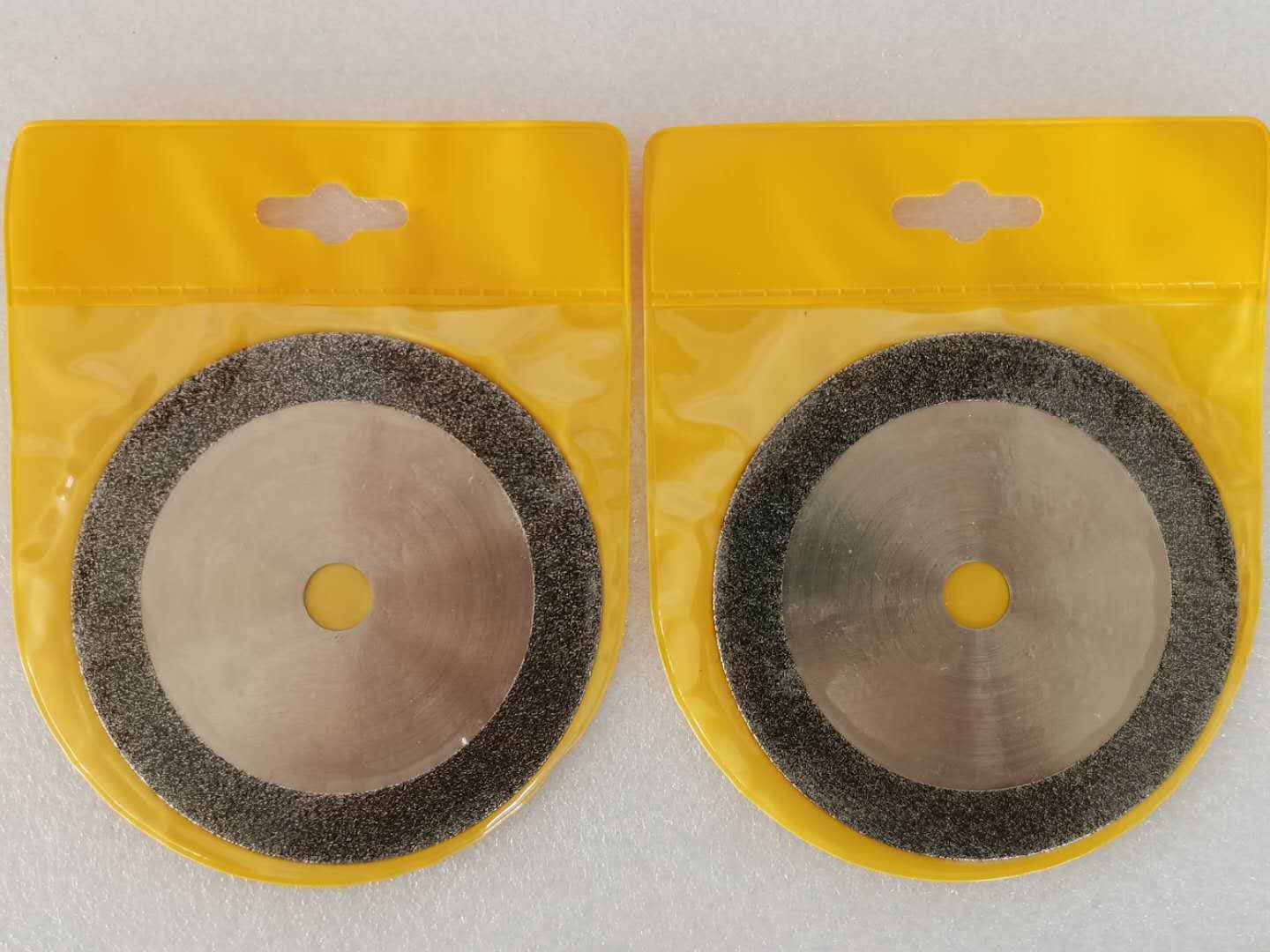

Product pictures:



CBN εργαλείων 1A1 100mm καρβιδίου δεσμών ρητίνης ρόδα διαμαντιών 0CBN εργαλείων 1A1 100mm καρβιδίου δεσμών ρητίνης ρόδα διαμαντιών 1



Packing and Transportation:



We will use carton packing, if you need carton or other packing, we can also support your request.We support express delivery, air transportation and sea transportation.The express delivery includes DHL, FedEx, TNT, UPS, EMS, etc. Usually, we will arrange the delivery within 7 working days after confirming the contract.



Company introduction:



Zhengzhou Jinchuan abrasive abrasive co., LTD. Is committed to providing the most advanced diamond and cubic boron nitride products.
We have experienced engineers and technical experts, professional industrial knowledge and technical services to help customers find the best solutions.
Our sophisticated production equipment and advanced testing equipment, so that our products good performance.Constantly pursue new technology and continuous improvement.
We look forward to our cooperation.
